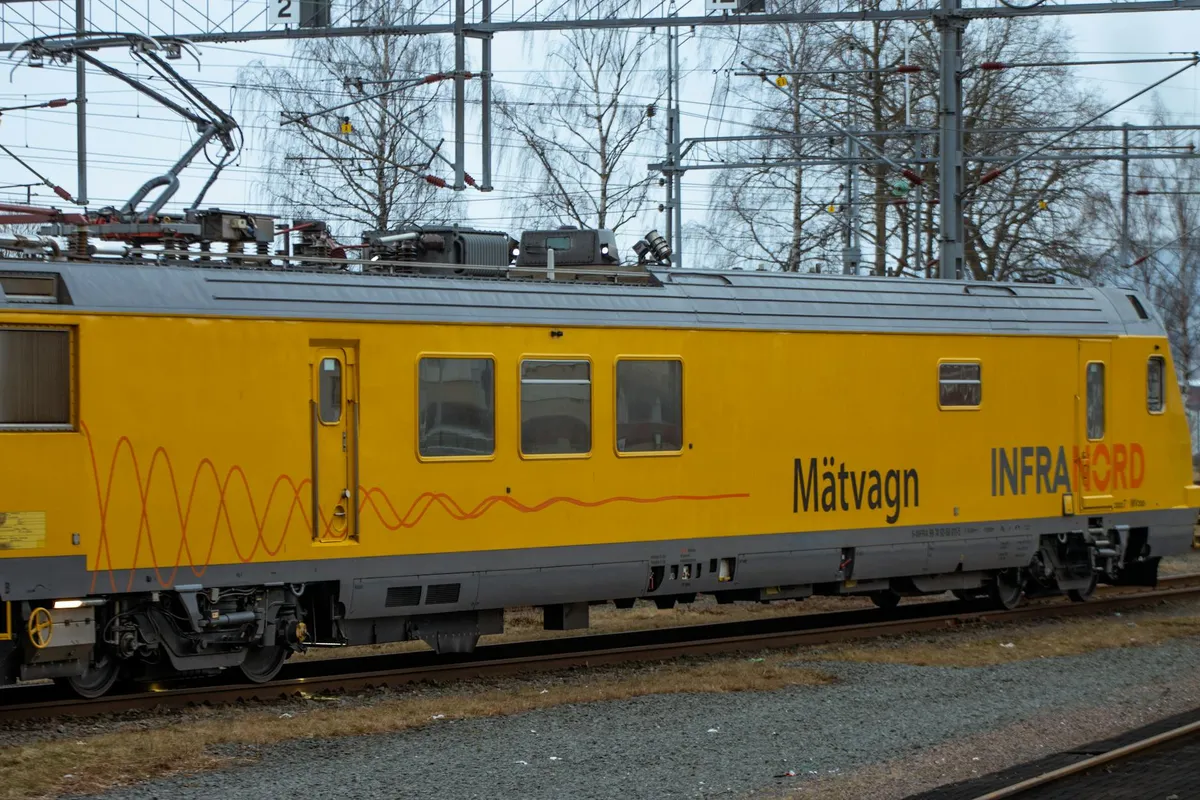

Pantograph carbon strip wear is among the most operationally significant variables in electric rail and trolleybus operation. Strip replacement intervals affect maintenance costs, vehicle availability, and overhead contact line wear in ways that compound across fleet lifetimes. Despite the operational significance, public technical literature on actual wear patterns under varying service conditions remains thin.
This analysis examines 18 months of field data from 142 vehicles operated by three European transit authorities between 2023 and 2024. Each vehicle was instrumented for current draw, contact force, and ambient conditions. Strip wear was measured at scheduled inspection intervals using calibrated profile gauges. The objective is to identify wear patterns that recur substantially across operating conditions rather than to develop predictive models of individual strip lifetime. This data provides a practical case study for understanding engineering materials in demanding real-world applications.
Methodology
The dataset includes:
142 vehicles across three operators — one heavy rail commuter system, one light rail network, and one urban trolleybus fleet. The mix produces variation in current draw, contact force regimes, and ambient operating conditions.
Carbon strips from two suppliers meeting EN 50367 specifications. Strip composition documented including binder content, copper impregnation level, and density.
Measurement intervals: every 28 days for trolleybus units, every 56 days for rail units, with full strip removal and dimensional measurement at end-of-life.
Operating data captured: vehicle kilometers, current-time integrals, contact force averages, ambient temperature and humidity ranges.
End-of-life criterion: residual strip thickness below the manufacturer-specified minimum, or visible damage requiring replacement before the dimensional threshold.
The 18-month period yielded 1,247 strip-life observations across the three operating environments.
Aggregate findings
Across the dataset, several wear patterns recur substantially:
Current density correlates strongly with wear rate. Wear rate per vehicle-kilometer scales with the time-integrated current at the contact point. The relationship is approximately linear above 200 amps mean current and trends nonlinear below 100 amps where mechanical wear dominates.
Contact force matters more than commonly assumed. Contact forces above 110 newtons mean produced wear rates 23 percent higher than forces in the 70-90 newton range, holding current constant. Below 60 newtons, arcing-induced wear accelerated rapidly.
Ambient humidity affects wear in measurable ways. Wear rate increased 12 percent on average during high-humidity months compared with dry-season operation across the same routes.
Supplier composition variation produces measurable performance differences. The two carbon strip suppliers in the study showed strip lifetimes differing by 18 percent on average for similar operating conditions.
Stop-start density correlates with wear nonlinearly. Routes with frequent stops produced wear rates higher than route-kilometer alone would predict, attributable to higher current draw during acceleration phases.
The current density finding
The current density relationship warrants specific examination:
At sustained mean currents above 200 amps, electrical wear (graphite oxidation, micro-arcing at contact discontinuities) dominates total wear. Wear rate scales approximately with the integral of current over time at the contact point.
Below 100 amps mean current, mechanical wear (sliding abrasion, particulate debris contamination) dominates. The relationship to current weakens. Strip lifetime in this regime depends more on contact line condition and contact force than on electrical loading.
The transitional regime between 100 and 200 amps produces variable wear behavior. Specific operating conditions (ambient humidity, contact line wear state, vehicle dynamics) affect which mechanism dominates.
For fleet operators, the implication is that traction system design choices affecting steady-state current draw have direct strip-lifetime consequences. Energy-efficient operating practices reduce strip consumption proportionally above the 200-amp threshold.
The contact force finding
Contact force results were among the more actionable findings:
Higher contact forces increase mechanical wear approximately linearly with force. The 23 percent wear-rate increase between the 70-90 N and >110 N regimes was statistically significant across all three operators.
Lower contact forces below 60 N produced rapidly accelerated wear due to contact loss events. Each loss event creates an arc on reattachment. The arcs cause localized strip damage and accelerate subsequent wear.
The optimal contact force range for the strip compositions studied was 70-90 N for typical operating speeds. Above this range, mechanical wear penalties accumulate. Below the range, arcing penalties accumulate.
Pantograph control system tuning that maintains contact force within the optimal range produced measurable strip lifetime improvements at the operators that implemented it during the study period.
The supplier composition finding
The 18 percent lifetime difference between carbon strip suppliers warranted specific investigation:
Both suppliers met EN 50367 nominal specifications. Both used copper-impregnated carbon-graphite composition. The standardized parameters were within compliance ranges for both products.
Detailed compositional analysis showed differences in:
Copper impregnation distribution. One supplier's strips showed more uniform impregnation across the conducting surface; the other showed slight gradient patterns.
Binder formulation differences within the carbon matrix that affect mechanical wear behavior.
Manufacturing process variations (pressing pressure, sintering temperature profiles) that affect final strip density and porosity.
The compositional differences fall within standard compliance ranges but produce measurable lifetime differences in field operation. Procurement specifications written to standards alone do not capture these performance-relevant variations.
Methodological caveats
Several caveats apply to the analysis:
The 18-month period limits long-term trend analysis. Strip lifetime patterns over multi-year horizons may differ.
The three operators selected do not represent global operating diversity. Specific climates (extreme cold, very high humidity, high-altitude operation) are not represented.
The two suppliers in the study do not represent the full carbon strip market. Other suppliers may produce different performance characteristics.
Observational rather than controlled methodology. Operating conditions varied across vehicles in ways that limit causal inference about specific factors.
The findings should be understood as documented patterns within the studied conditions rather than universal claims about pantograph wear.
What the data does not show
Several intuitively expected relationships did not appear substantial in the data:
Vehicle age within the studied range (3-18 years) did not correlate substantially with strip wear rate after controlling for current draw and contact force.
Operating speed had weaker direct effect than expected. Speed effects mostly operated indirectly through contact force dynamics.
Seasonal temperature variation produced smaller effects than humidity. Temperature in the operating range studied (-5 to 35 C) did not show strong direct wear correlation.
The absence of effects is itself informative. Variables sometimes assumed to be primary drivers of strip wear were secondary in the studied dataset.
Implications for fleet operators
The findings suggest several actionable patterns for fleet operators:
Pantograph contact force monitoring and control produces measurable lifetime benefits. Investment in contact force diagnostics has reasonable payback periods at fleets with substantial pantograph maintenance budgets.
Procurement specifications should include compositional and manufacturing process requirements beyond minimum standards compliance. Standards-only procurement leaves substantial performance variation on the table.
Energy-efficient driving practices reduce strip consumption directly above the 200 A threshold. Operator training programs targeting steady-state current reduction have direct maintenance cost benefits.
Humidity-related wear acceleration suggests climate-specific maintenance interval adjustment. Routes in consistently humid environments may justify shorter inspection intervals.
Specific fleet-level cost-benefit analysis should drive implementation decisions. The patterns documented here provide a starting framework rather than universal prescriptions.
Comparison with prior literature
The findings align partially with prior published work:
The current-wear relationship corresponds to the documented behavior in EN 50367 development background materials and related laboratory work.
The contact force optimal range matches the broader range identified in earlier UIC and IEC technical reports.
The supplier composition variation finding extends existing knowledge by quantifying field performance differences within standards-compliant products.
The humidity finding adds to a thinner literature on environmental wear effects in pantograph operation.
The aggregate picture is consistent with prior knowledge while adding documented field quantification of effects that have been described qualitatively in earlier work.
Conclusion
The 18-month dataset documents pantograph carbon strip wear patterns across 142 vehicles in three European transit operations. The patterns identified — current density effects, contact force optima, humidity sensitivity, supplier compositional variation — recur substantially across the studied operating conditions.
The patterns provide a framework for fleet-level decisions about pantograph maintenance, procurement specification, and operational practice. The methodological caveats limit universal claims about pantograph wear behavior, but the documented patterns warrant consideration in operations facing substantial pantograph maintenance costs.
Further work extending the dataset to additional operating environments, longer time horizons, and broader supplier coverage would strengthen the picture this initial analysis develops.
